The SA38603G is a versatile 384 segment pure static driver. Static drive means 100% drive time of LCD patterns.
This provides very good contrast and wide view angle like printed quality compared with 1/4 duty LCD drivers at similar cost.
High frame frequency makes it suitable for VA applications.
SA38603G has very low power consumption and operating current can be as low as 6uA
Applications:

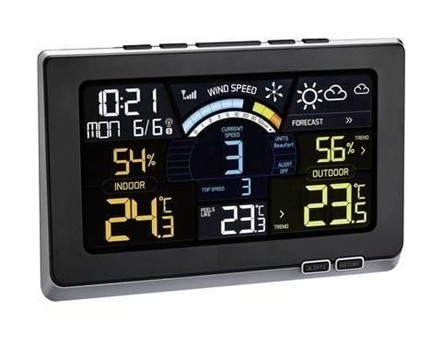

VATN Display
Home Appliances
Electric Motorcycle
Industrial Meters
Features
- 384 segment static drive outputs
- Vdd, VLCD: 8V - 5.5V
- Interface: 3-line / 4-line serial and I2C
- Wide range frame frequency control by software (1.6Hz~259Hz), suitable for VA displays and super low operating current
- High transparency for negative displays with backlight due to static
- Low power consumption: 6.0uA - 60uA operating current
- 1000hr 85C, 85RH test guaranteed
