SA3622, SA3622G is a 36 seg x 4 com LCD driver.
It has low power consumption and is specially designed for meters and battery powered products.
It has 80Hz frame frequency and is suitable for VA applications.
Its high ESD tolerance makes it good for home appliances and industrial instruments.
Application:
VATN Display

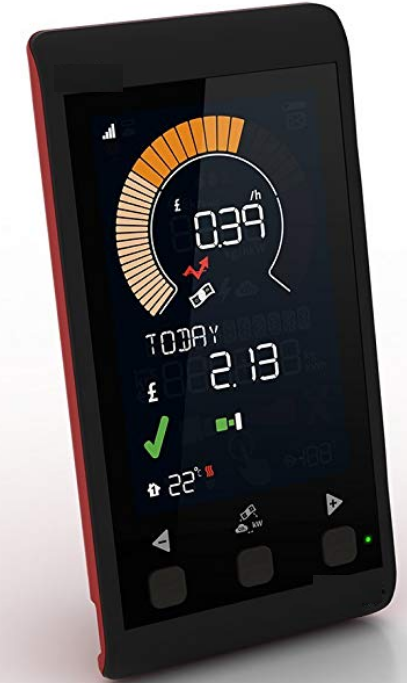

Industrial Meters
Home Appliances
Features
- 36 segments and 2,3,4 commons
- Vdd, Vlcd: 2.5V ～ 5V
- Internal 36 x 4 bit display ram DDRAM
- 1/2, 1/3, 1/4 duty
- I2C serial interface
- 80Hz frame frequency for VA applications
- Internal bias voltage buffer amplifier eliminates crosstalk
- No external component required
- Internal oscillator
- Low power consumption 7uA operating, 1uA standby current
- Internal power-on reset circuit
- Top Class 3B ESD HBM 8KV
- Package: COG
