The SA38603G is a versatile 384 segment pure static driver. Static drive means 100% drive time of LCD patterns.
This provides very good contrast and wide view angle like printed quality compared with 1/4 duty LCD drivers at similar cost.
High frame frequency makes it suitable for VA applications.
SA38603G has very low power consumption and operating current can be as low as 6uA
Applications:
VATN Display
Home Appliances

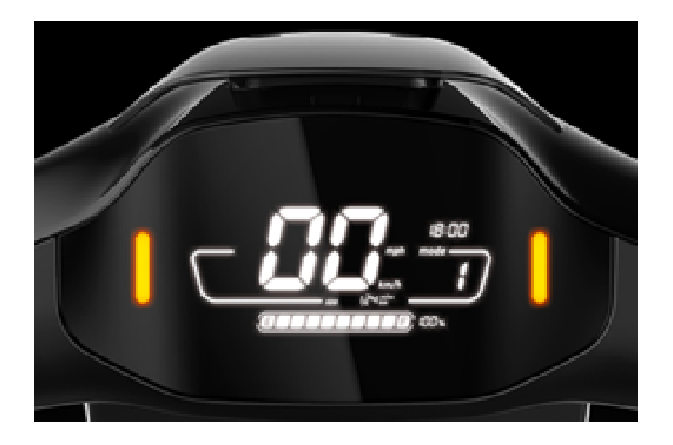

Electric Motorcycle

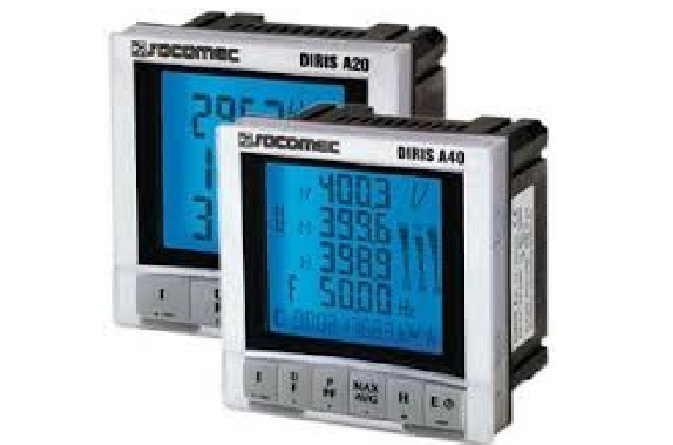

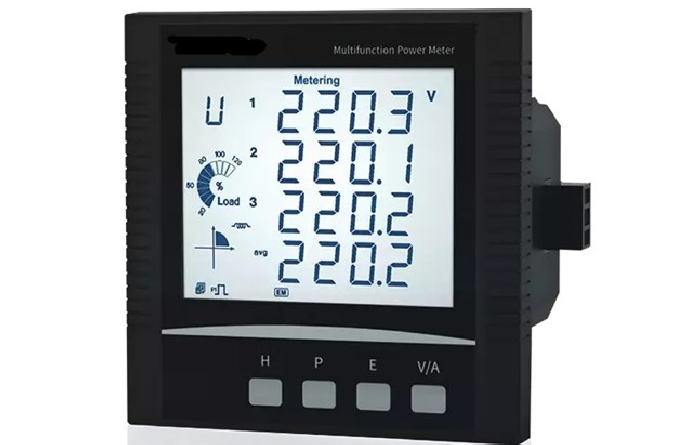

Industrial Meters
Features
384 segment static drive outputs
Vdd, VLCD: 8V - 5.5V
Interface: 3-line / 4-line serial and I2C
Wide range frame frequency control by software (1.6Hz~259Hz), suitable for VA displays and super low operating current
High transparency for negative displays with backlight due to static
Low power consumption: 6.0uA - 60uA operating current
1000hr 85C, 85RH test guaranteed
Details
SA3621G
SA3621G is a low cost, multi-function LCD driver suitable for big volume low priced products
Applications:
Consumer Products
Home Appliances
Features
32 segment x 2,3,4 common
Supply voltage: 2.4 ~ 5.2V
VLCD voltage: 3 ~ 5V (max.=Vdd)
Interface: 3/4 SPI
1000hr 85℃, 85RH test guaranteed
Package type: COG
Very low cost
Details
SA3631G
SA3631 is a 128 segment LCD driver with high frame frequency (85, 128Hz) for VA applications.
Applcations:
VATN Display
Consumer Products
Home Appliances
Features
32 segment x 2,3,4 common (128 patterns)
Supply voltage: 2.4 ~ 5.2V
VLCD voltage: 3 ~ 5V (max.=Vdd)
High frame frequency for VA application
128Hz for 1/2 duty, 85Hz for 1/3 duty
Interface: 3/4 SPI
1000hr 85℃, 85RH test guaranteed
Package type: COG
Very low cost
Details
SA3630G
SA3630/SA3630G is a 31 pattern (31 seg × 1 com) static drive LCD driver.
Static drive means 100% driving time for the LCD pattern and therefore the best contrast ratio.
It has a high 250Hz frame frequency and is suitable for VA applications.
Applcations:
VATN display
Consumer Products
Home Appliances
Features
31 seg x 1 com static drive
Operating voltage: 4V~5.2V
Built-in 31×1 bit display RAM
250Hz frame frequency. VA applications
3/4 wire SPI serial interface
Readable display memory
Three data accessing modes
VLCD pin for adjusting LCD operating voltage
1000hr 85, 85RH test guaranteed
Package: COG
Very low cost
Details
SA3622G
SA3622, SA3622G is a 36 seg x 4 com LCD driver.
It has low power consumption and is specially designed for meters and battery powered products.
It has 80Hz frame frequency and is suitable for VA applications.
Its high ESD tolerance makes it good for home appliances and industrial instruments.
Application:
VATN Display
Industrial Meters
Home Appliances
Features
36 segments and 2,3,4 commons
Vdd, Vlcd: 2.5V ～ 5V
Internal 36 x 4 bit display ram DDRAM
1/2, 1/3, 1/4 duty
I2C serial interface
80Hz frame frequency for VA applications
Internal bias voltage buffer amplifier eliminates crosstalk
No external component required
Internal oscillator
Low power consumption 7uA operating, 1uA standby current
Internal power-on reset circuit
Top Class 3B ESD HBM 8KV
Package: COG
Details
SA38602G
The SA38602G is a versatile 274 segment (138 seg x 1 com + 136 seg x 1 com, Dual Chip) static drive.
Static drive means 100% drive time of LCD patterns.
It provides very good contrast and wide view angle compared with 1/4 duty LCD drivers at similar cost.
High frame frequency makes it suitable for VA applications.
SA3860G has very low power consumption and operating current can be as low as 4uA
Applications
VATN Display
Home Appliances
Electric Motorcycle
Industrial Meters
Features
274 segment static drive outputs
Built in two independent (138 x 1+136 x 1) bit display RAM
Vdd, VLCD: 8V - 5.5V
Interface: 3-line / 4-line serial and I2C
Wide range frame frequency control by software (1.6Hz~259Hz), suitable for VA displays and super low operating current
High transparency for negative displays with backlight due to static
Low power consumption: 4.0uA - 30uA operating current
1000hr 85C, 85RH test guaranteed
Package: COG
Details
SA3636G
SA3636G is a versatile 640 segments LCD driver.
It has high frame frequency, static and 1/2 duty drive and is suitable for VA applications.
Applications
VATN Display
Electric Motorcycle
Temperature Control
Home Appliances
Features
160 segment x 1,2,3,4 common
Static, 1/2, 1/3, 1/4 duty
Vdd : 1.8V to 5.5V
Vlcd: 6V maximum
IIC interface
110Hz frame frequency suitable for VA applications
Package type: COG
1000hr 85, 85RH test guaranteed
Details
SA3860G
The SA3860G is a versatile 160 segment static LCD driver.
Static drive means 100% drive time of LCD patterns.
It provides very good contrast and wide view angle compared with 1/4 duty LCD drivers at similar cost.
SA3860G has very low power consumption and operating current can be as low as 2uA
Applications
VATN Display
Home Appliances
Electric Motorcycle
Industrial Meters
Features
160 segment static drive outputs
Built-in 160 x 1 bit display RAM
Vdd, VLCD: 8V - 5.5V
Internal voltage doubler for VLCD up to 5.5V with 3V Vdd.
V0adj pin for adjusting VLCD operating voltage
3-line / 4-line serial interface and I2C serial interface
Wide range frame frequency control by software (1.6Hz~259Hz), suitable for VA displays and super low operating current
High transparency for negative displays with backlight due to static
Low power consumption: 0uA - 30uA operating current
1000hr 85C, 85RH test guaranteed
Package: COG
Details
SA3633G
SA3633G is a versatile 320 segments LCD driver.
It has high frame frequency and is suitable for VA applications.
Applications
VATN Display

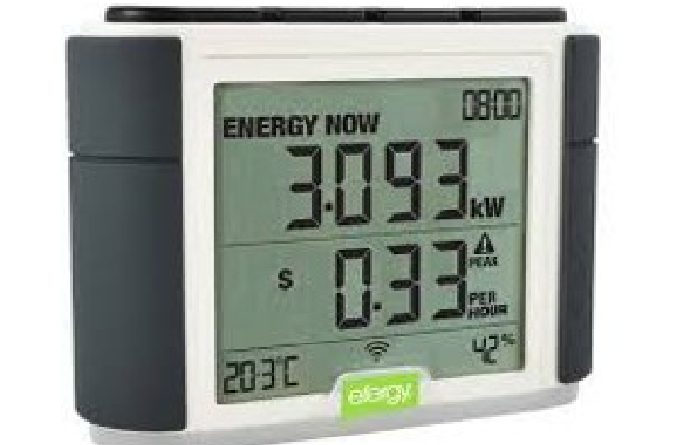

Electricity Meter
Temperature Control
Home Appliances
Features
80 segments x 1,2,3,4 commons
Static, 1/2, 1/3, 1/4 duty
Vdd: 1.8V to 5.5V
Vlcd: 6V maximum
IIC interface
110Hz frame frequency suitable for VA applications
Package type: COG
1000hr 85, 85RH test guaranteed
Details
